What is Switch spoofing attack and how to prevent Switch spoofing attack

External Resources

Before continuing, visit following links to learn what is Dynamic Trunking Protocol (DTP) and VLAN Hopping attack.

What is DTP (Dynamic Trunking Protocol)

Difference Between DTP "dynamic desirable" and "dynamic auto" Modes

How to configure DTP (Dynamic Trunking Protocol) Modes

What is VLAN Hopping attack

Dynamic Trunking Protocol (DTP) is used to dynamically build trunk links between two switches. "dynamic desirable", "dynamic auto" and "trunk" modes are used to configure an interface to allow dynamic trunking and frame tagging.

Switch spoofing is a type of VLAN hopping attack,

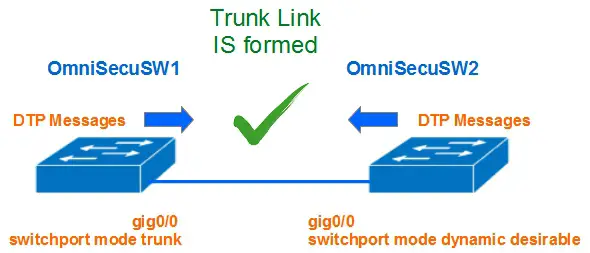

dtp trunk dynamic desirable

A switch interface which is connected to an end device (a computer or a printer) are normally in access mode and that end device will have access to its own VLAN. Traffic from other VLANs are not forwarded via that interface.

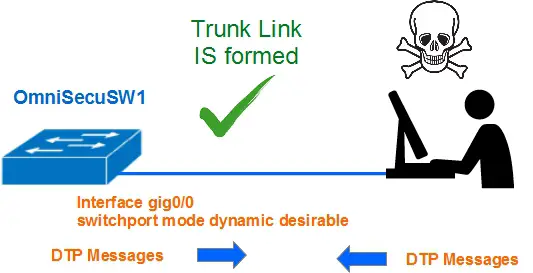

Consider a situation where an attacker is connected to a switch interface which is configured with either "dynamic desirable", "dynamic auto" or "trunk" modes. If the attacker can generate Dynamic Trunking Protocol (DTP) messages from his computer, a trunk link can be formed between his computer and the switch.

Another method of Switch Spoofing is by connecting a rogue switch to an interface configured with "dynamic desirable", "dynamic auto" or "trunk" modes.

Switch Spoofing Attack

Once the trunk link is formed, the attacker can gain traffic from all the VLANs. The attacker can now sniff the traffic from all the VLANs.

How to prevent Switch Spoofing attacks

1) Never leave an access port in "dynamic desirable", "dynamic auto" or "trunk" mode.

2) Hardcode all the access ports as access port and disble DTP everywhere.

OmniSecuSW1#configure terminal
OmniSecuSW1(config)#interface range gigabitethernet 0/0 - 20
OmniSecuSW1(config-if-range)#switchport mode access
OmniSecuSW1(config-if-range)#switchport nonegotiate
OmniSecuSW1(config-if-range)#exit
OmniSecuSW1(config)#exit
OmniSecuSW1#

3) Hardcode all the trunk ports as trunk port and never enable DTP on trunk ports.

OmniSecuSW1#configure terminal
OmniSecuSW1(config)#interface range gigabitethernet 0/20 - 23
OmniSecuSW1(config-if-range)#switchport mode trunk
OmniSecuSW1(config-if-range)#switchport nonegotiate
OmniSecuSW1(config-if-range)#exit
OmniSecuSW1(config)#exit
OmniSecuSW1#

4) Shutdown all the interfaces which are not in use.
