How to configure Cisco IOS Zone Based Firewall

External Resources

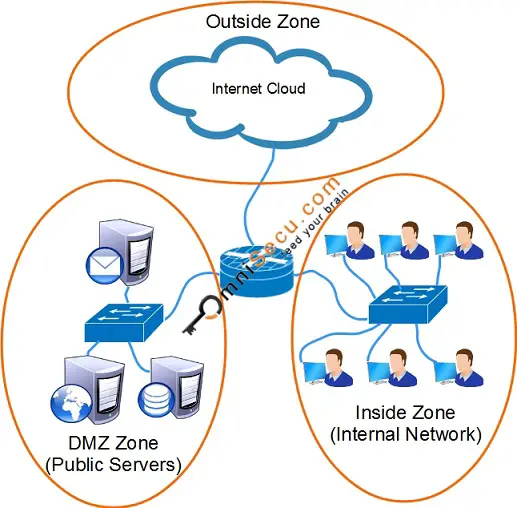

To configure Cisco IOS Zone Based Firewall, initial step is to create Zones and Zone Pairs. Consider the network topology below.

zone based firewall

How to create Zones

To create three Zones, "INSIDE", "OUTSIDE" and "DMZ", follow these configuration steps.

OmniSecuR1#configure terminal
OmniSecuR1(config)#zone security INSIDE
OmniSecuR1(config-sec-zone)#exit
OmniSecuR1(config)#zone security OUTSIDE
OmniSecuR1(config-sec-zone)#exit
OmniSecuR1(config)#zone security DMZ
OmniSecuR1(config-sec-zone)#exit
OmniSecuR1(config)#exit
OmniSecuR1#



How to assign IP addresses and apply interfaces to zones

OmniSecuR1#configure terminal
OmniSecuR1(config)#interface gigabitEthernet 0/0
OmniSecuR1(config-if)#ip address 172.16.0.1 255.255.0.0
OmniSecuR1(config-if)#no shutdown
OmniSecuR1(config-if)#zone-member security INSIDE
OmniSecuR1(config-if)#exit
OmniSecuR1(config)#exit
OmniSecuR1#



OmniSecuR1#configure terminal
OmniSecuR1(config)#interface gigabitEthernet 1/0
OmniSecuR1(config-if)#ip address 192.168.15.1 255.255.255.0
OmniSecuR1(config-if)#no shutdown
OmniSecuR1(config-if)#zone-member security DMZ
OmniSecuR1(config-if)#exit
OmniSecuR1(config)#exit
OmniSecuR1#



OmniSecuR1#configure terminal
OmniSecuR1(config)#interface gigabitEthernet 2/0
OmniSecuR1(config-if)#ip address 122.175.156.1 255.255.255.0
OmniSecuR1(config-if)#no shutdown
OmniSecuR1(config-if)#zone-member security OUTSIDE
OmniSecuR1(config-if)#exit
OmniSecuR1(config)#exit
OmniSecuR1#



Create Zone Pairs and specify the direction of traffic

In this example, we are going to create only one Zone pair, having its direction from "INSIDE" to "OUTSIDE". To create a Zone pair with direction from "INSIDE" to "OUTSIDE", follow these steps.

Please visit the following link to learn what are Zones and Zone Pairs.

OmniSecuR1#configure terminal
OmniSecuR1(config)#zone-pair security IN-to-OUT source INSIDE destination OUTSIDE
OmniSecuR1(config-sec-zone-pair)#exit
OmniSecuR1(config)#exit
OmniSecuR1#



How to create Interzone Firewall Access Policy

Cisco IOS Zone Based Firewall Access Policies are made using class maps, policy maps and service policies. Please visit following link to learn what are class maps, policy maps and service policies.

Class maps are used to identify the traffic. To create a class map to match protocols HTTP, HTTPS, FTP and ICMP follow these steps.

OmniSecuR1#configure terminal
OmniSecuR1(config)#class-map type inspect match-any OMNISECU-CMAP-IN-to-OUT
OmniSecuR1(config-cmap)#match protocol http
OmniSecuR1(config-cmap)#match protocol https
OmniSecuR1(config-cmap)#match protocol ftp
OmniSecuR1(config-cmap)#match protocol dns
OmniSecuR1(config-cmap)#match protocol icmp
OmniSecuR1(config-cmap)#exit
OmniSecuR1(config)#exit
OmniSecuR1#

Above configuration steps create a class-map "OMNISECU-CMAP-IN-to-OUT", which matches the network traffic HTTP, HTTPS, FTP, DNS and ICMP.

match-any and match-all are the two configuration parameters used in class-map configuration. match-any is used to match any of the criteria in the class map. match-all is used to match all the criteria in the class map. If we specify match-all in above class-map configuration there will not be a match, because there is no traffic which match HTTP, HTTPS, FTP, DNS and ICMP together.

Policy maps are used to define what we want to do with the traffic identified using Class map. To create a Policy map to inspect the HTTP, HTTPS, FTP DNS and ICMP traffic (which are identified using Class map in previous steps), follow these steps.

OmniSecuR1#configure terminal
OmniSecuR1(config)#policy-map type inspect OMNISECU-PMAP-IN-to-OUT
OmniSecuR1(config-pmap)#class type inspect OMNISECU-CMAP-IN-to-OUT
OmniSecuR1(config-pmap-c)#inspect
OmniSecuR1(config-pmap-c)#exit
OmniSecuR1(config-pmap)#exit
OmniSecuR1(config)#exit
OmniSecuR1#

Please note that "inspect" command is used to configure stateful inspection, which will allow the matching return traffic. If stateful inspection is configured, there is no need to create another policy in opposite direction, because the matching traffic is allowed.

Finally, create a service policy and apply the Policy map inside the Zone pair along its direction. Zone based Firewall is uni-directional. To create Service policy, follow these steps.

OmniSecuR1#configure terminal
OmniSecuR1(config)#zone-pair security IN-to-OUT s source INSIDE destination OUTSIDE
OmniSecuR1(config-sec-zone-pair)#service-policy type inspect  OMNISECU-PMAP-IN-to-OUT
OmniSecuR1(config-sec-zone-pair)#exit
OmniSecuR1(config)#exit
OmniSecuR1#f



Some show commands related with Zone based firewall are listed below



OmniSecuR1#show zone security
zone self
  Description: System defined zone


zone INSIDE
  Member Interfaces:
    GigabitEthernet0/0


zone OUTSIDE
  Member Interfaces:
    GigabitEthernet2/0


zone DMZ
  Member Interfaces:
    GigabitEthernet1/0



OmniSecuR1#show zone-pair security
Zone-pair name IN-to-OUT
    Source-Zone INSIDE  Destination-Zone OUTSIDE
    service-policy OMNISECU-PMAP-IN-to-OUT




OmniSecuR1#show class-map type inspect
 Class Map type inspect match-any OMNISECU-CMAP-IN-to-OUT (id 1)
   Match protocol http
   Match protocol https
   Match protocol ftp
   Match protocol icmp
   Match protocol dns



OmniSecuR1#show policy-map type inspectf
  Policy Map type inspect OMNISECU-PMAP-IN-to-OUT
    Class OMNISECU-CMAP-IN-to-OUT
      Inspect
    Class class-default
      Drop
