How to install Enterprise Subordinate (intermediate) Certificate Authority (CA)

Enterprise Certificate Authorities require Active Directory. Make sure the server you are planning to make an Enterprise Subordinate Certificate Authority is a member of an Active Directory Domain. Click the following link to learn about Active Directory and how to make a Windows 2003 server member of Active Directory domain.

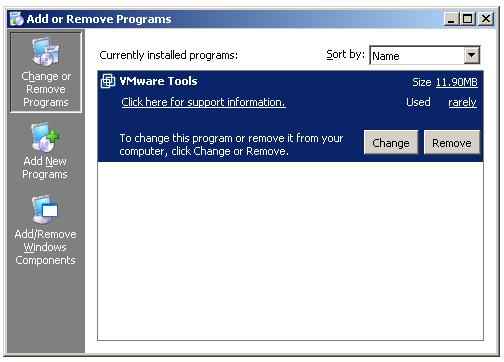

Select Start > Control Panel > Add or Remove Programs.

Installing Enterprise Subordinate Certificate Authority - Add Remove Programs

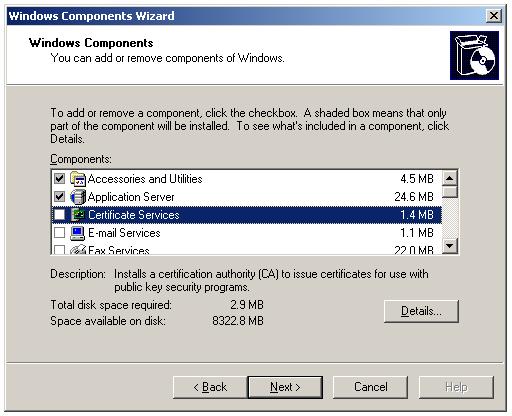

Click "Add/Remove Windows Components" button.

Installing Enterprise Subordinate Certificate Authority - Add Remove Windows Components

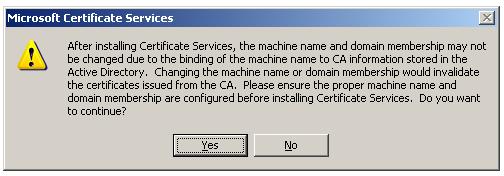

A dialog box will be displayed showing that the machine name cannot be changed after the installation of Certificate Services. Click "Yes" to continue.

Installing Enterprise Subordinate Certificate Authority - Machine Name Confirmation

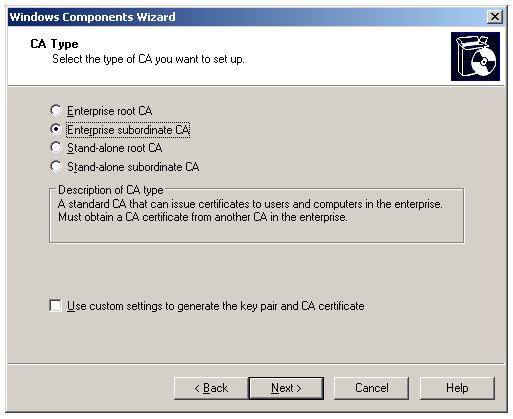

In the "CA Type" Screen, select "Enterprise Subordinate CA" radio button. Click "Next".

Installing Enterprise Subordinate Certificate Authority - Enterprise subordinate CA

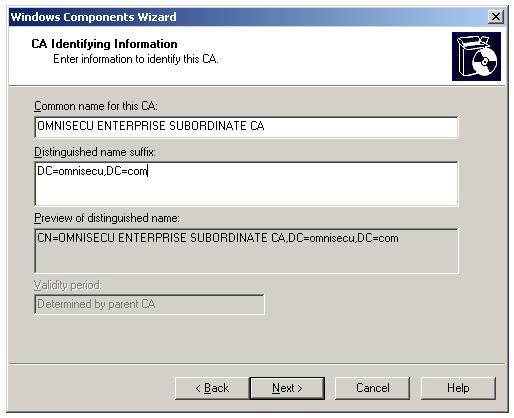

In "CA Identifying Information" screen, enter Common Name and Distinguished Name suffix (DN field will be filled automatically). Click "Next"

Installing Enterprise Subordinate Certificate Authority - Common Name

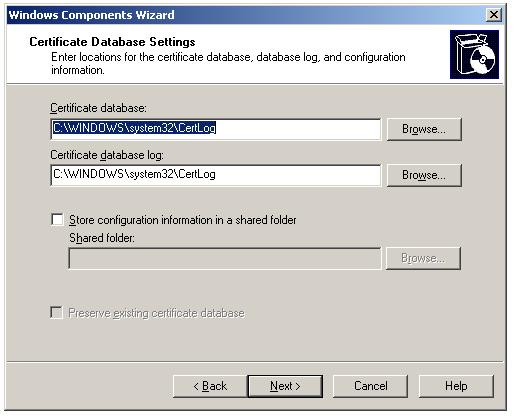

In "Certificate Database Settings" screen, keep default paths and click "Next".

Installing Enterprise Subordinate Certificate Authority - Database and Log file location

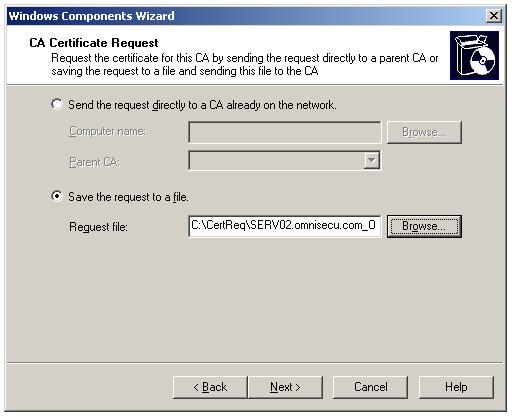

In "CA Certificate Request" screen, show the path where the Certificate request will be saved. To get a Certificate Authority certificate from Root Certificate Authority, we need this request file. Click "Next.

Installing Enterprise Subordinate Certificate Authority - Certificate Request

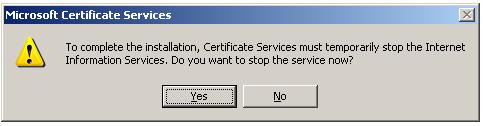

Click "Yes" to temporarily stop IIS and continue installation.

Installing Enterprise Subordinate Certificate Authority - Stop IIS Confirm

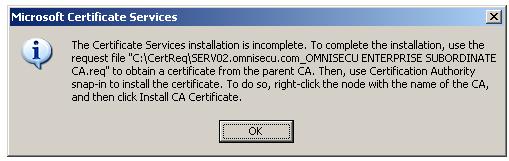

You may be prompted for the installation CD at this stage, mount the installation CD in CD Drive and select the required files from "i386" folder. Once the copying of files are over, a dialog box will be show stating that the installation is not complete and use the certificare request file to obtain a CA certificate.

Installing Enterprise Subordinate Certificate Authority - Installation incomplete

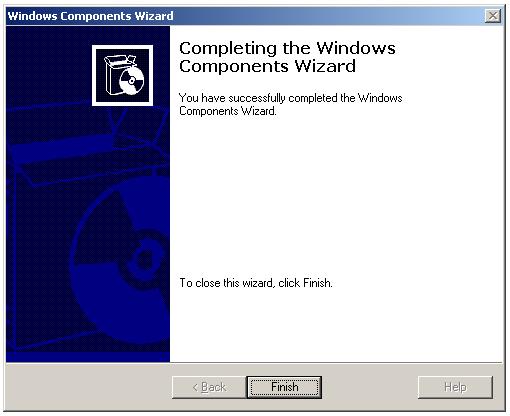

Click "Finish" to finish the installation.

Installing Enterprise Subordinate Certificate Authority - Finish

The installation of the Enterprise subordinate Certificate Authority is not complete. To complete the installation, we need to get the CA certificate from the Root CA. Copy the request file in a floppy drive or a pendrive to the Root CA and submit the request to the Root CA. To learn how to submit a request to Root CA, click "Next".
