TFTP Error Packet

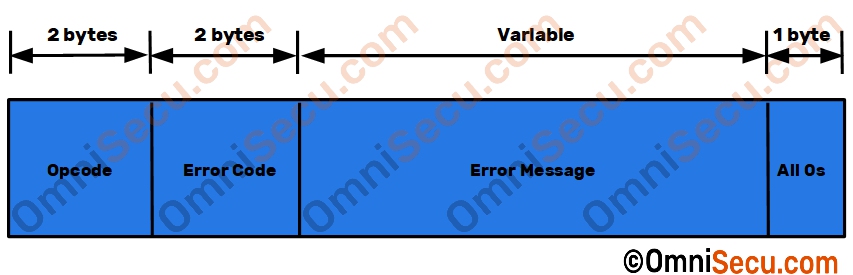

The TFTP ERROR packet is used to notify a problem during data transmission or when a TFTP connection cannot be established. The format of TFTP ERROR packet is as shown below.


Following are the fields of TFTP DATA packet.

  • Opcode : Opcode field of TFTP ERROR packet is 16-bits (2-bytes) in length. TFTP ERROR packets have an opcode value of "5".

  • Error Code : The error code of TFTP ERROR packet is an integer showing the type of the error. Following table lists the possible values of error code of TFTP ERROR packet.

  • Error Code Meaning
    0 Not defined
    1 File not found
    2 Access Violation
    3 Disk full or Quota exceeded
    4 Illegal TFTP operation
    5 Unknown port number
    6 File exists
    7 No such user

  • Error Message : Error Message field of the TFTP ERROR packet is a variable size field. Error Message field is a human readable field and is in ASCII.

  • All 0s : The TFTP ERROR packet is terminated with one byte of all zeros.

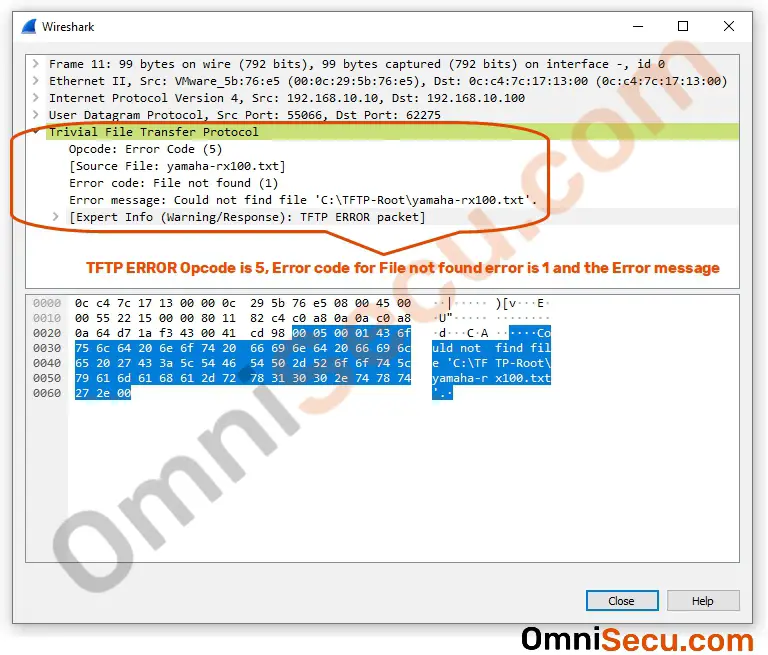

Following image shows a Wireshark packet capture screeshot of TFTP ERROR packet.
